R-PMS System Use Cases : Model . KDOT PMS Process and Data Flow Overview : Pool . PMS Modeling Processes : Choreography Sub-Process . Prediction Modeling : Activity . PMS Modeling Swimlanes : Swimlane . Identify the Road Categories : Activity

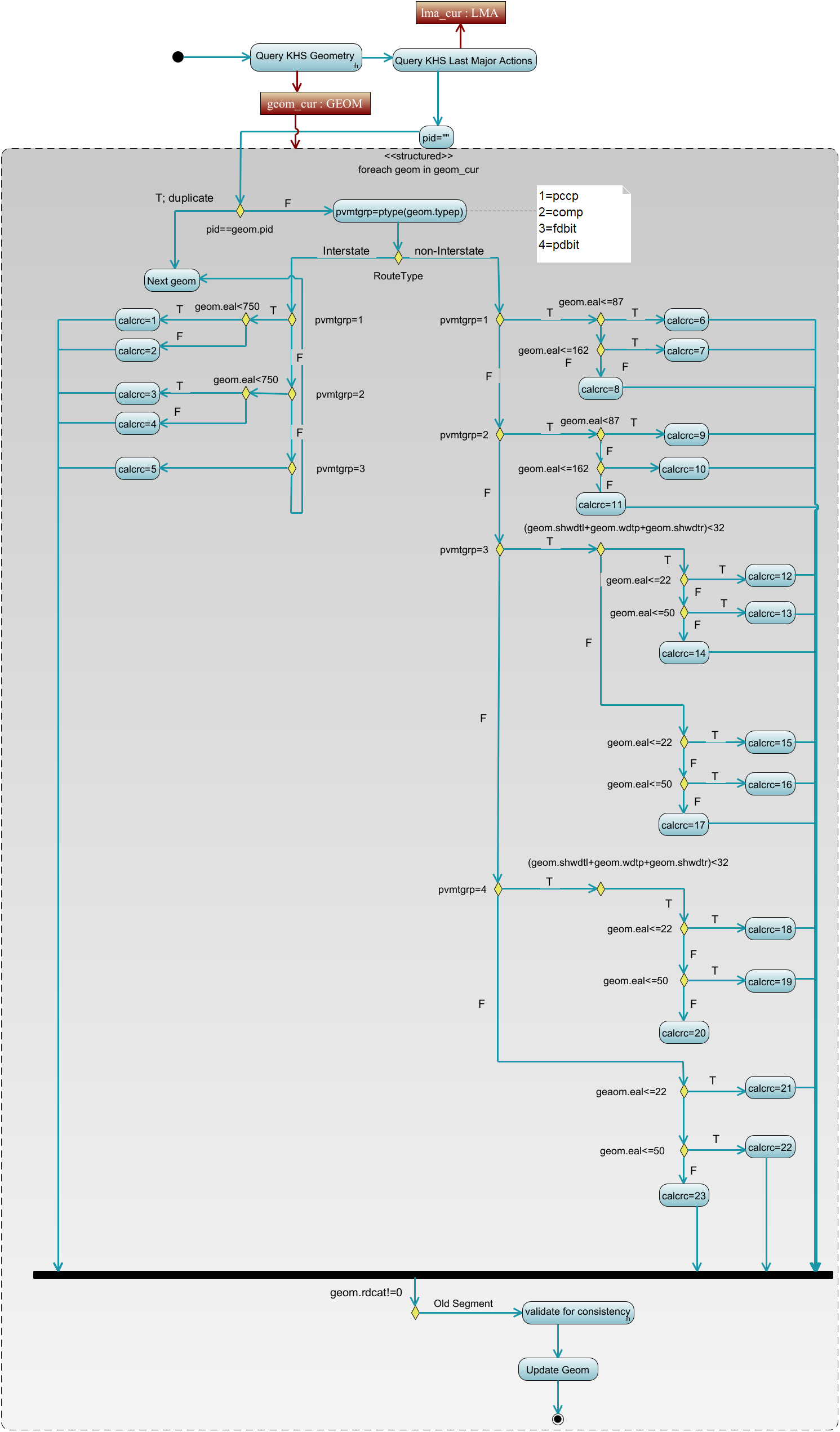

Activity Diagram - R-PMS System - Identify the Road Categories Subdiagram link

Jump to: Please select a model element Update Geom : Action validate for consistency : Action calcrc=23 : Action calcrc=22 : Action calcrc=21 : Action calcrc=20 : Action calcrc=19 : Action calcrc=18 : Action calcrc=17 : Action calcrc=16 : Action calcrc=15 : Action calcrc=14 : Action calcrc=13 : Action calcrc=12 : Action calcrc=11 : Action calcrc=10 : Action calcrc=9 : Action calcrc=8 : Action calcrc=7 : Action calcrc=6 : Action calcrc=5 : Action calcrc=4 : Action calcrc=3 : Action calcrc=2 : Action calcrc=1 : Action Next geom : Action pvmtgrp=ptype(geom.typep) : Action pid="" : Action Query KHS Last Major Actions : Action Query KHS Geometry : Action Unnamed Activity Final Node : Activity Final Node Old Segment : Decision Node geom.eal<=50 : Decision Node geaom.eal<=22 : Decision Node geom.eal<=50 : Decision Node geom.eal<=22 : Decision Node (geom.shwdtl+geom.wdtp+geom.shwdtr)<32 : Decision Node pvmtgrp=4 : Decision Node geom.eal<=50 : Decision Node geom.eal<=22 : Decision Node geom.eal<=50 : Decision Node geom.eal<=22 : Decision Node (geom.shwdtl+geom.wdtp+geom.shwdtr)<32 : Decision Node pvmtgrp=3 : Decision Node geom.eal<=162 : Decision Node geom.eal<87 : Decision Node pvmtgrp=2 : Decision Node geom.eal<=162 : Decision Node geom.eal<=87 : Decision Node pvmtgrp=1 : Decision Node pvmtgrp=3 : Decision Node geom.eal<750 : Decision Node pvmtgrp=2 : Decision Node geom.eal<750 : Decision Node pvmtgrp=1 : Decision Node RouteType : Decision Node pid==geom.pid : Decision Node Unnamed Initial Node : Initial Node Unnamed Join Node : Join Node foreach geom in geom_cur : Loop Node Unnamed Note : Note lma_cur : Object Node geom_cur : Object Node
